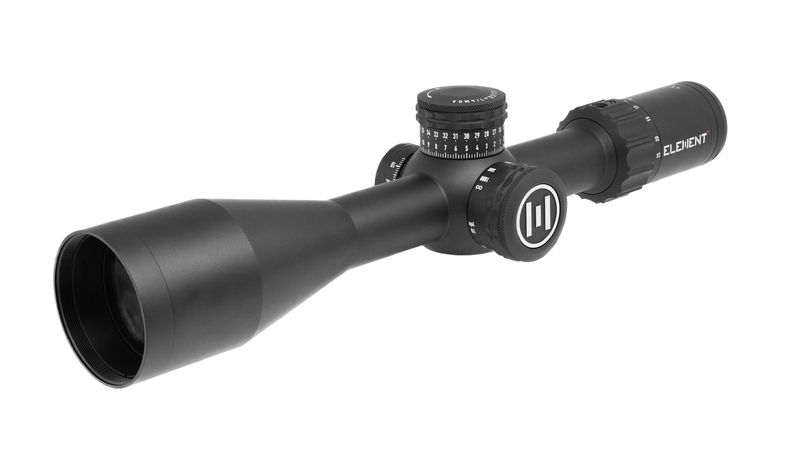

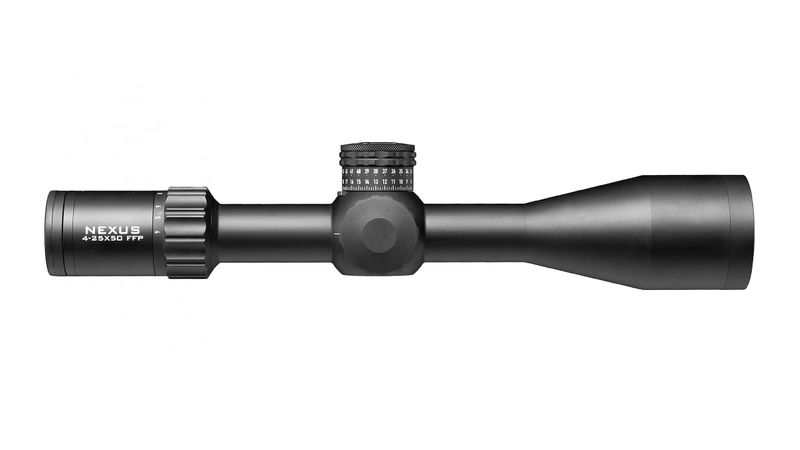

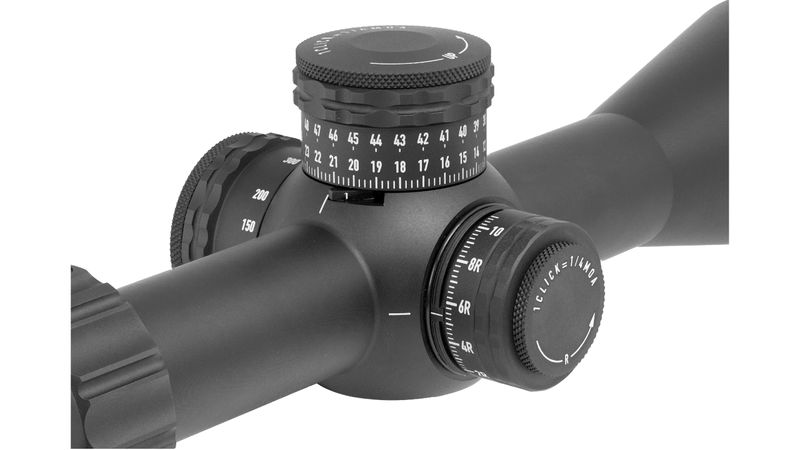

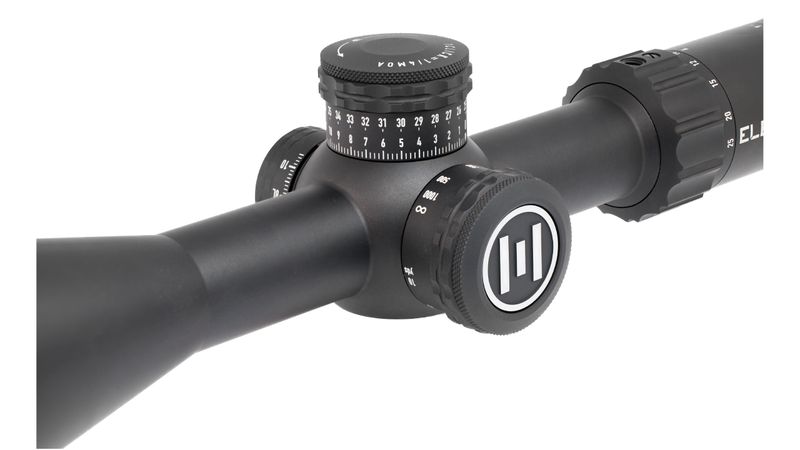

The word “NEXUS” means “focal point”, and that is what this model is to the ELEMENT OPTICS range. The GEN II takes the DNA of the first generation NEXUS and pushes it to another level with a 4-25x Magnification, a new Turret System and Digital Illumination – the ultimate 30mm riflescope. A variety of different reticle designs in both MOA and MRAD cater to all shooters: Simplified options are easy on the eye, while more complex designs allow experienced shooters to hold off with precision. Our design team of global competition winners & hunters understand optics, and have introduced strict quality control measures to ensure perfect operation under testing conditions. And if something goes wrong? Our Platinum Lifetime Warranty has you covered – No paperwork or registration required.
MAGNIFICATION RANGE | 4-25x |
TUBE DIAMETER | 30mm |
OBJECTIVE LENS DIAMETER | 50mm |
EXIT PUPIL | 7.1-2.0mm |
EYE RELIEF | 77-92mm |
FIELD OF VIEW | @100yds: 29.2-4.7 ft | @100m: 9.7-1.6m |
CLICK VALUE | 1/4 MOA (20 MOA / REV) | 1/10 MRAD (10 MRAD / REV) |
ELEVATION ADJUSTMENT RANGE | 100 MOA | 29 MRAD |
WINDAGE ADJUSTMENT RANGE | 40 MOA | 11.6 MRAD |
MINIMUM PARALLAX | 10 YDS | 10 METERS |
LENGTH | 13.8” | 350mm |
WEIGHT | 30.7oz | 870g |
